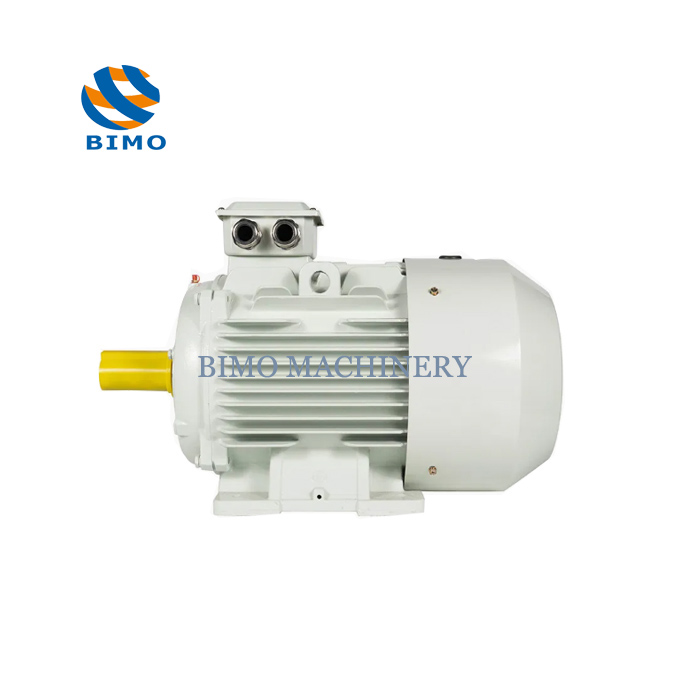

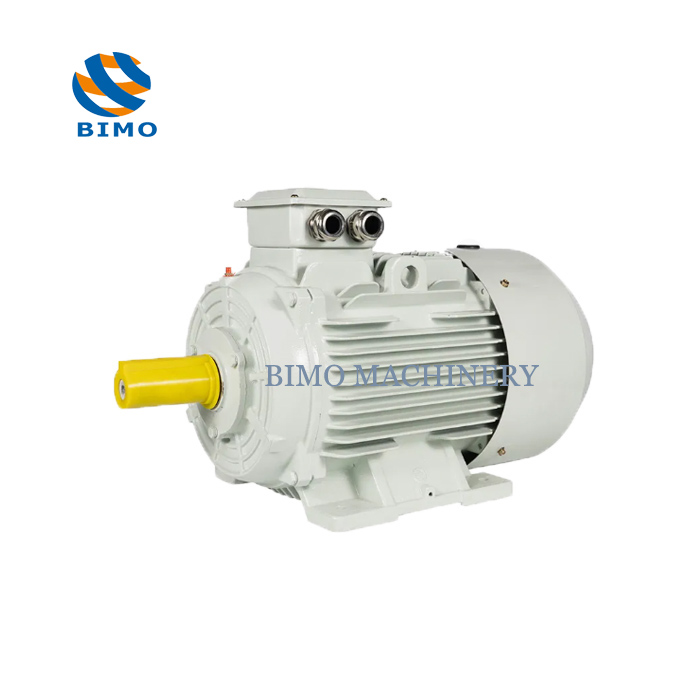

Premium Efficiency IE5 30kw 380v B3 4 Pole AC Asynchronous Electric Motor
1, The YE5 series of ultra high efficiency three phase asychronous motors with high strengh cast iron structure, have the characteristics of ultra high efficiency, high reliability, beautiful apperance, low noise,little vibration, and can be applied to fan, pump, compressor, construction machinery and other machines that need enery-saving and continuous operation
2, 100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding
production of enameled wire,high thermal conductivity,good heat dissipation effect.
3, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.
4, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.
| Frame Size | H80~H355 |
| Rated Power | 0.75~375kW |
| Rated Voltage | 380V |
| Rated Frequency | 50Hz |
| Poles | 2p,4p,6p,8p,10p |
| Protection Degree | IP54,IP55 |
| Insulation Class | F |
| Cooling Method | IC411 |
| Duty | S1 |
| Efficiency Class | IEC60034-30-1:IE5 |
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.
Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.
Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.
Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.
Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
