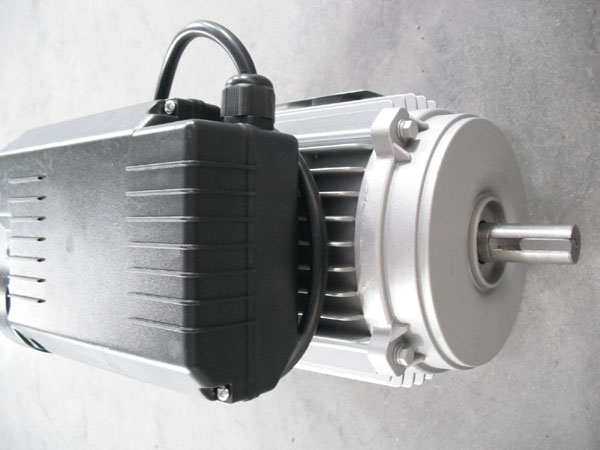

YL Pure Copper Wire AC Single Phase Induction Motor 2hp 3hp 5hp 7.5hp 10hp 110V 220V 2800rpm

Brand Name : BM

Model Number : YL series

Certification : CE

Place of Origin : China

MOQ : 10PCS

Price : USD35-USD120

Payment Terms : T/T

Supply Ability : 10000pcs per month

Delivery Time : 25 days

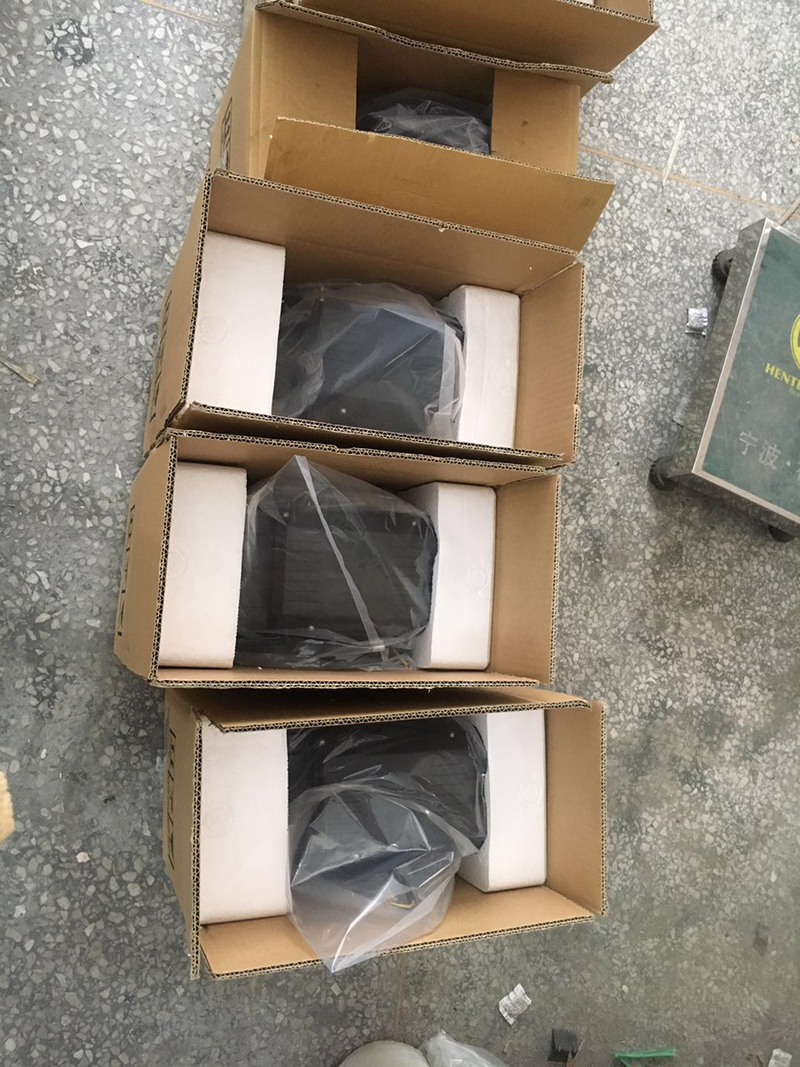

Packaging Details : Cartons/Pallets

Name : YL single phase motor

Protect Feature : IP55

Frequency : 50/60Hz

Efficiency : IE 1

Frame Size : 48

Power : 2hp

Contact Now

Factory Price 1HP 2HP 3HP 5.5HP 10HP AC Single Phase Electric Motors



1, YL series single-phase dual-capacitor asynchronous motor is designed and manufactured in according with national standard,



2, newly developed by our company with low noise, compact construction, light weight, easy maintenance etc.



3, These motors are widely used on air compressors, pumps, fans, refrigerator, medical instruments, small-size machine etc. especially for occasion where only single-phase power supply is available



Franme
reference
and size		 Rated
power		 Full load
sreed in
revolutions
per minute		 Full load
current at
rated
voltage		 Exciter
Voltage		 Efficiency Power
factor		 Direct on ine
starting torque
ratio		 Direct on
linepull out
torque
ratio		 Diect on line
starting current
ratio		 Mean sound
pressure
level@1mon
noload		 Start
Capacitor		 Running
Capacitor		 Weight
Type Output
(KW)		 Speed
(r/min)		 Amps
(A)		 Voltage
(V)		 EFF.
(%)		 P.F.
Cos		 LRT
RLT		 BDT
RLT		 LRA
RLA		 Noise
LwdB(A)		 (uf/v) (uf/v) Weight
(kg)
YL711-2 0.37 2800 2.7 220 67 0.92 1.8 1.6 5.5 72 50/250 8/450 10
YL712-2 0.55 2800 3.9 220 70 0.92 1.8 1.6 5.5 72 100/250 15/450 11
YL711-4 0.25 1400 2.0 220 62 0.92 1,7 1.6 5.0 67 75/250 15/450 9
YL712-4 0.37 1400 2.8 220 65 0.92 1.7 1.6 5.0 67 75/250 15/450 10
YL801-2 0.75 2800 4.9 220 73 0.95 1.8 1.6 5.5 75 100/250 25/450 14
YL802-2 1.1 2800 7.0 220 75 0.95 1.8 1.6 5.5 75 100/250 30/450 15
YL801-4 0.55 1400 3.95 220 69 0.92 1.7 1.6 5.0 70 100/250 15/450 13
YL802-4 0.75 1400 5.05 220 71 0.95 1.7 1.6 5.0 70 100/250 25/450 14
YL90L1-2 1.5 2800 9.4 220 76 0.95 1.8 1.6 5.5 78 200/250 40/450 22
YL90L-2 2.2 2800 13.7 220 77 0.95 1.7 1.6 5.5 78 300/250 50/450 24
YL90L1-4 1.1 1400 7.3 220 72 0,95 1.7 1.6 5.0 73 150/250 30/450 21
YL90L-4 1.5 1400 9.7 220 74 0.95 1.7 1.6 5.0 73 200/250 40/450 23
YL100L-2 3 2800 18.2 220 79 0.95 1.7 1.6 6.0 83 350/250 55/450 24
YL100L1-4 2,2 1400 13,9 220 76 0.95 1,7 1.6 5.0 78 300/250 50/450 32
YL100L2-4 3 1400 18,4 220 78 0.95 1.7 1.6 5.0 78 350/250 55/450 33
YL112M-2 3,7 2800 22,1 220 80 0.95 1,7 1,6 6.0 83 350/250 60/450 46
YL112M-4 3.7 1400 22.4 220 79 0.95 1.7 1.6 5.5 83 350/250 60/450 44



YL Pure Copper Wire AC Single Phase Induction Motor 2hp 3hp 5hp 7.5hp 10hp 110V 220V 2800rpmYL Pure Copper Wire AC Single Phase Induction Motor 2hp 3hp 5hp 7.5hp 10hp 110V 220V 2800rpmYL Pure Copper Wire AC Single Phase Induction Motor 2hp 3hp 5hp 7.5hp 10hp 110V 220V 2800rpmYL Pure Copper Wire AC Single Phase Induction Motor 2hp 3hp 5hp 7.5hp 10hp 110V 220V 2800rpmYL Pure Copper Wire AC Single Phase Induction Motor 2hp 3hp 5hp 7.5hp 10hp 110V 220V 2800rpm

YL Pure Copper Wire AC Single Phase Induction Motor 2hp 3hp 5hp 7.5hp 10hp 110V 220V 2800rpm



FAQ
Q: Are you Factory or Trading Company?
A: We are Factory. That has been focusing on motors and accessories for more than 20 years.

Q: What is your warranty?
A: Our warranty is One Year. Any parts damaged within warranty. We will provide new one for free and supply the solution.

Q: What kind of motor can you supply?
A: Single Phase Motor, Three Phase Motor, NEMA standard motor, Explosion Proof Motor etc.

Q: Do you offer OEM Service?
A: Yes. We offer OEM/ODM service.

Q: What is your lead Time?
A: Usually 10 days. Precise Time depend on Qty.
